Hand-gathering long lengths of fabric for tiered skirts, lehenga borders, cushion frills, and children's frocks requires extensive pinning and basting. Even then, gathering density often varies across the seam.

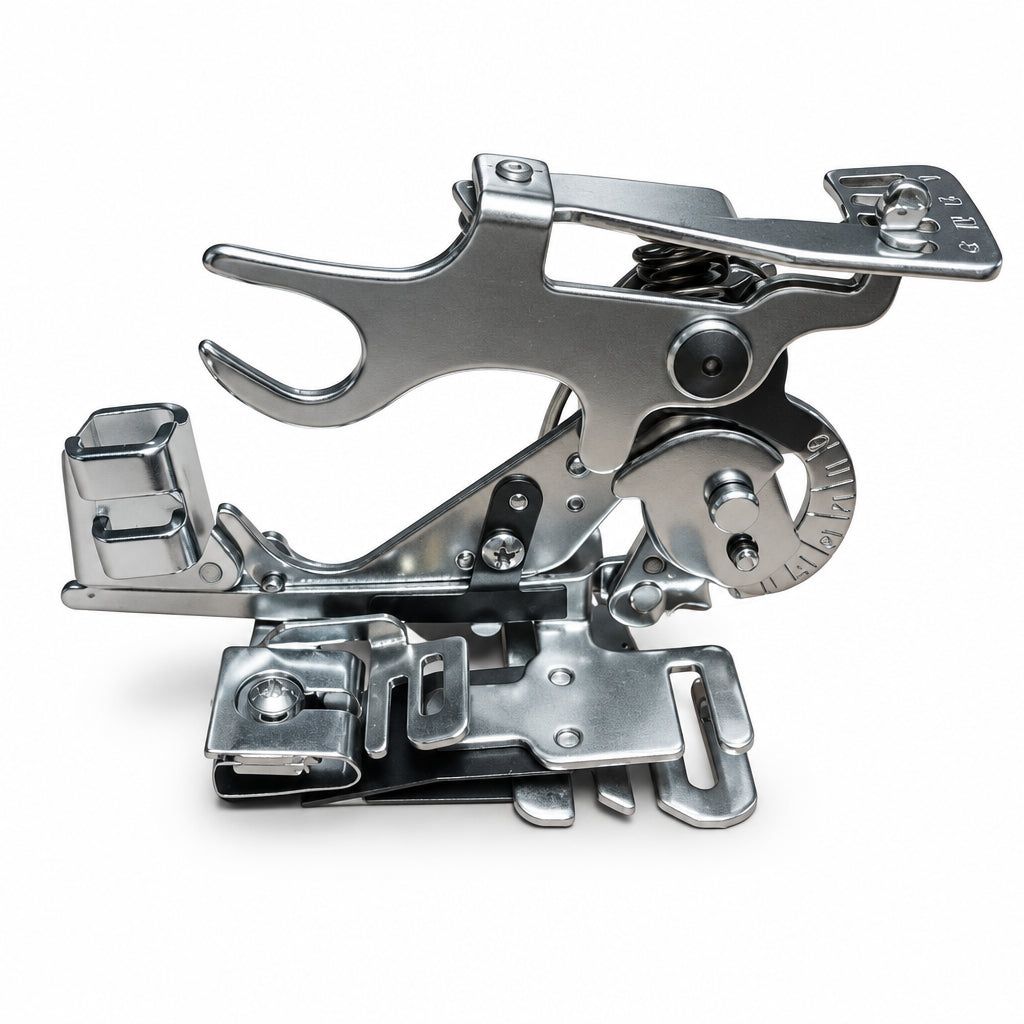

The mechanical ruffler foot automates this by mechanically folding a tuck of fabric directly ahead of the needle at uniform intervals.
Understanding the Ruffler Adjustments
A standard ruffler foot features two primary control mechanisms:
- The Interval Selector Slot: A stepped lever stamped with 1, 6, 12, and ★ (star).
- 1: Ruffles on every single stitch (creates dense, gathered ruffles).
- 6: Pleats once every 6 stitches (ideal for neat, spaced pleats on skirts and curtains).
- 12: Pleats once every 12 stitches (wide box-style pleat spacing).
- ★: Disengages the tucking blade, allowing regular straight stitching without removing the foot.
- The Depth Adjustment Screw: Regulates how far forward the tucking blade pushes the fabric. Turning the screw clockwise increases pleat depth (up to 8mm); counter-clockwise produces tiny gathers.
Single-Pass Ruffle and Join
The ruffler foot's greatest time-saving trick is sewing a ruffle while simultaneously attaching it to a flat base fabric:
- Slide the flat base fabric underneath the entire ruffler foot against the feed dogs.
- Slide the ruffle fabric strip into the separate guide slot between the two ruffler blades.
- As you sew, the machine ruffles only the top strip while stitching both layers cleanly together onto the flat backing in one continuous pass.
